Description
Style – Ebike
Size & Fit

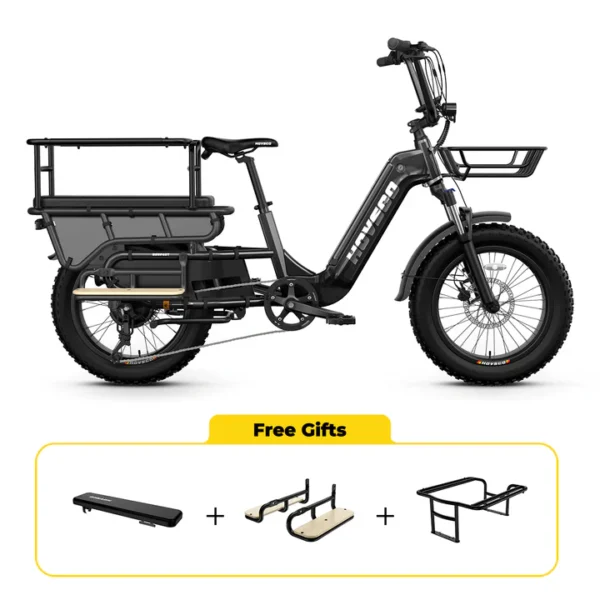

What’s In The Box
| 1* Electric Bike | 1* Kickstand | 1* Quick Release |
| 2* Pedals | 1* Charger | 1*Derailleur Guard |
| 2*Screws Kits | 4* Allen Key Wrenchs | 3* Wrenches |
| 2*Screwdrivers | 2* Owner’s Manual | 1* Front Wheel |
| 1* Battery with keys | 1* Fender Set | 1* Rear Rack （Has been installed on bike) |
| 1* Front Basket（Need to be purchased separately) | 1* Large Basket（Need to be purchased separately) | 1*Children’s Seat” (Need to be purchased separately) |
| 2*Running Boards（Need to be purchased separately) | 1* Backseat Cushion（Need to be purchased separately) |
Technical Specifications
| MOTOR
1300W (Peak) 750W (Sustained), 48V Brushless Rear Hub Motor |
BATTERY
Removable Internal Lithium-ion 48V, 15Ah (720Wh) |
CHARGER
Included is a 54.6V 3 Amp Fast Charger, 4 Hours Charging |

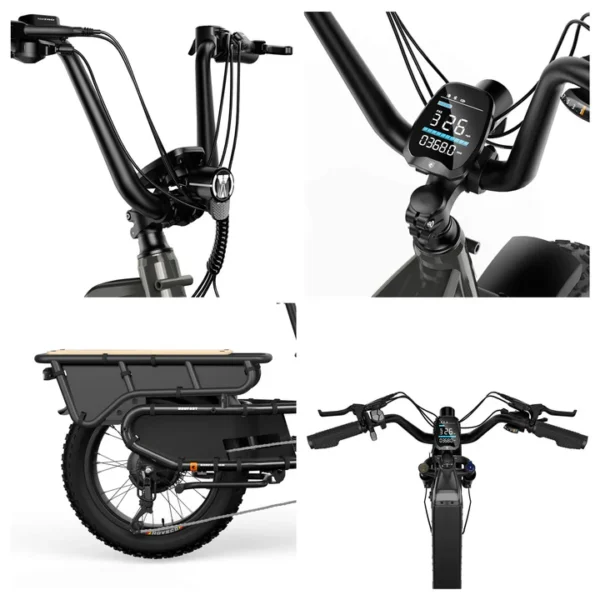

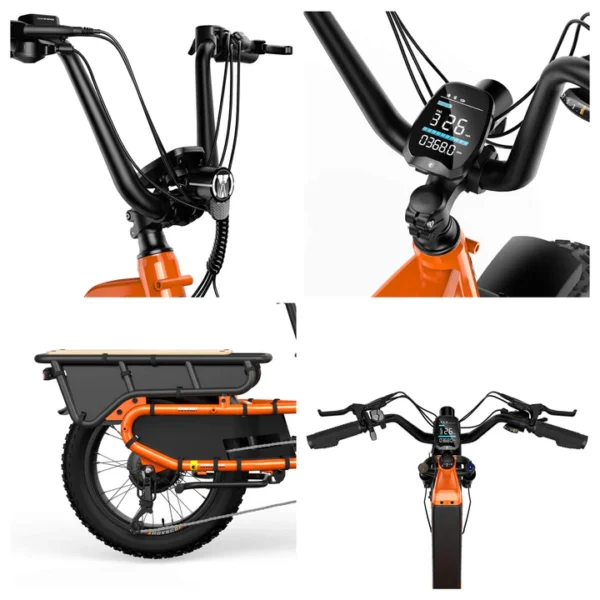

| DISPLAY
BC280 LCD Smart Easy Read Display with Backlight screen with app |
CRANKSET
170mm w/48T |
CASSETTE
14-28T, 7 Speed Cassette |
| BOTTOM BRACKET
Square Taper, Sealed |
BRAKES
Hydraulic Disc Brakes, 180mm Rotors |
REAR DERAILLEUR
7 Speed |
| CHAIN
7 Speed |
PEDALS
9/16′ Alloy Platform |
HANDLEBARS
Aluminum 31.8mm,680mm |
| HEADSET
VP Sealed Bearing Headset |
GRIPS
Ergonomic Comfort |
SADDLE
Quality Ergonomic Saddle |
| SEATPOST
Forged Alloy, 30.4mm x 350mm, 2-Bolt Clamp |
STEM
Threadless, 31.8mm, 7 Degree Rise |
SEAT CLAMP
Quick Release |
| RIM
Double Wall Aluminum 36h Front & Rear |
SPOKES
Black Stainless 12 Gauge |
TUBES
Butyl Rubber, Schrader Valve |
| HUBS
36H Disc Thru-axle Front, Nutted Rear |
TIRES
20 x 4″ Ebike Rated Tires |
FRAME
6061 Single-Butted Aluminum Alloy with Internal Battery |
| FORK
Suspension Fork with 45mm travel, with lockout |
KICKSTAND
Included, Rear Mount |
THROTTLE
Throttle on demand – Throttle from a complete stop |
| SPEED
Max 28mph after unlocked |
SENSORS
Torque Sensor |
PEDAL ASSIST
5 Levels |
| RANGE
40-60 Miles Average |
HOVSCO APP
Free Download in Apple App and |
WEIGHT LIMIT
Maximum Payload Capacity: 450 lbs |
| WEIGHT
57.58lbs ( Not Including Battery ) |
WEIGHT
66.4 lbs ( Including Battery ) |
